| 型号Model | 马达 Motor (kw) |
输送能力 Conveying Capacity (kg/hr) |
输送高度 Conveying Height (m) |
料斗容量 Material Hopper Volume(L) |
吸料管径 Conveying Tube Calibre(mm) |
外型尺寸Extemal Dimensions |
重量(kg)Weight | ||
| 主机Controller (L*W*H) |
储料斗Material Hopper (L*W*H) |
主机 Controller |
储料斗 Material Hopper |
||||||

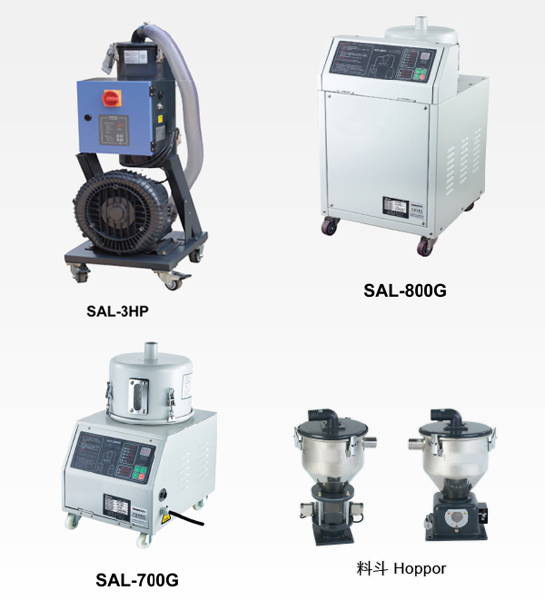

| SAL-700G | 1 | 300 | 4.5 | 6 | Φ38 | 450*380*600 | 360*260*430 | 30 | 6 |
| SAL-700GE | 1 | 300 | 4.5 | 6 | Φ38 | 450*380*600 | 360*260*530 | 30 | 6 |
| SAL-800G1 | 1.1 | 350 | 4.5 | 6 | Φ38 | 450*380*600 | 360*260*430 | 45 | 6 |
| SAL-800G1E | 1.1 | 350 | 4.5 | 6 | Φ38 | 450*380*600 | 360*260*530 | 45 | 6 |
| SAL-800G2 | 1.5 | 400 | 5 | 6 | Φ38 | 450*380*600 | 400*260*430 | 50 | 10 |
| SAL-800G2E | 1.5 | 400 | 5 | 6 | Φ38 | 450*380*600 | 400*260*530 | 50 | 10 |
| SAL-3HP | 2.2 | 550 | 7 | 12 | Φ38 | 450*380*800 | 400*260*750 | 60 | 12 |
| SAL-4HP | 3 | 600 | 8 | 20 | Φ38 | 450*380*800 | 400*260*750 | 65 | 12 |
| SAL-5HP | 3.7 | 700 | 8 | 20 | Φ38 | 450*380*800 | 400*350*750 | 75 | 20 |
| SAL-7.5HP | 5 | 800 | 10 | 30 | Φ50 | 450*380*800 | 400*350*1000 | 90 | 25 |
| SAL-10HP | 7.5 | 1000 | 12 | 30 | Φ50 | 450*380*800 | 400*350*1000 | 90 | 25 |
