| 型号 Model |
功率Power (W) |
输送速度Conveying Speed(m/min) |
皮带宽度Belt Width(mm) |
重量 Weight (kg) |

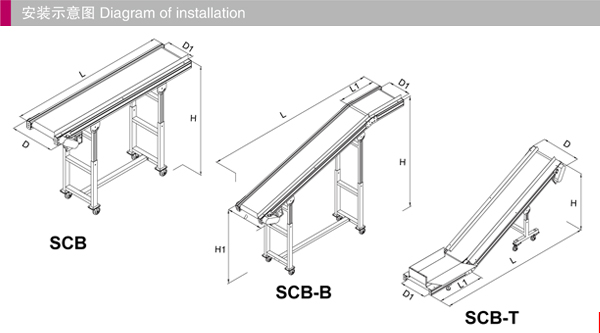

L (mm) |
L1 (mm) |
D (mm) |
D1 (mm) |
H (mm) |
H1 (mm) |
| SCB-200 | 60 | 0-9.5 | 200 | 55 | 1700 | 400 | 200 | 850-1100 | ||
| SCB-300 | 60 | 0-9.5 | 300 | 60 | 1700 | 400 | 300 | 850-1100 | ||
| SCB-400 | 60 | 0-9.5 | 400 | 70 | 1700 | 400 | 400 | 850-1100 | ||
| SCB-500 | 140 | 0-9.5 | 500 | 85 | 1700 | 400 | 500 | 850-1100 | ||
| SCB-200B | 60 | 0-9.5 | 200 | 90 | 2250 | 500 | 400 | 200 | 1450 | 950 |
| SCB-300B | 60 | 0-9.5 | 300 | 110 | 2250 | 500 | 400 | 300 | 1450 | 950 |
| SCB-400B | 140 | 0-9.5 | 400 | 120 | 2250 | 500 | 400 | 400 | 1450 | 950 |
| SCB-500B | 140 | 0-9.5 | 500 | 145 | 2250 | 500 | 400 | 500 | 1450 | 950 |
| SCB-200T | 140 | 0-9.5 | 200 | 97 | 2350 | 700 | 500 | 200 | 970 | |
| SCB-300T | 140 | 0-9.5 | 300 | 112 | 2350 | 700 | 500 | 300 | 970 | |
| SCB-400T | 140 | 0-9.5 | 400 | 127 | 2350 | 700 | 500 | 400 | 970 | |
| SCB-500T | 140 | 0-5.5 | 500 | 150 | 2350 | 700 | 500 | 500 | 970 |
